The CT Supralight





Standard Summary

Systems

Conventional three axis with dual controls

Electronic flap control with pre-selection switch

Stabilator Trim Control with electric actuator (optional)

Airframe emergency parachute - standard

Exterior

High quality exterior finish

Single beam composite landing gear

Hydraulic disc brakes and parking brake

Steerable nose wheel, elastomer damped

Large baggage compartment with two entry doors



Interior

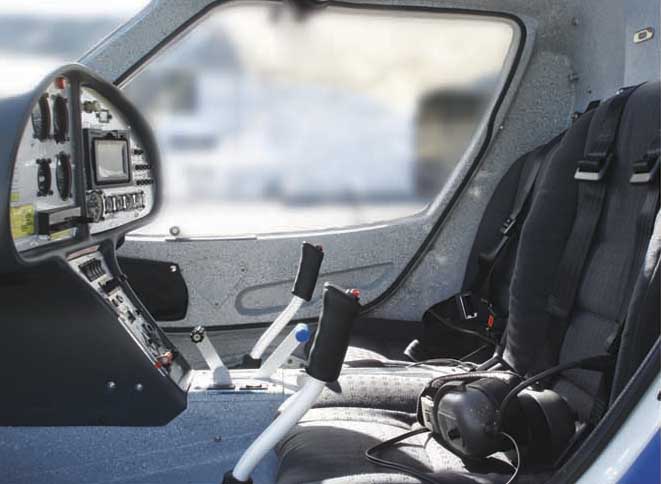

Wide and comfortable cabin

Large gullwing doors

Adjustable seats with 4-point harness

Superior overview through large window areas

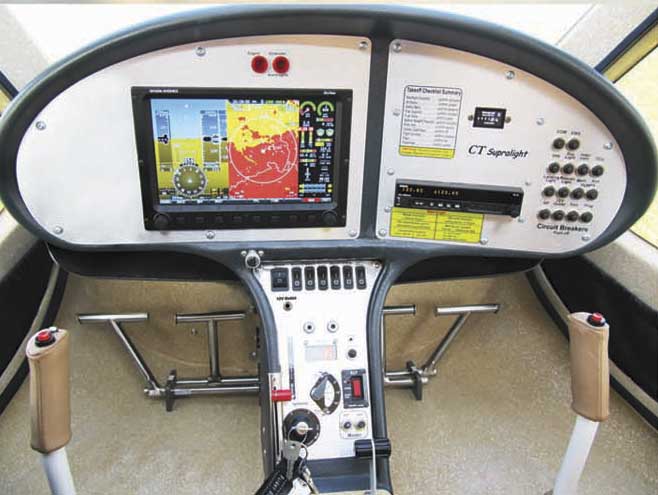

Dynon Skyview 10" Glass solution with integrated GPS funtion (optional) and synthetic vision

Engine

100-hp Rotax 912S / 2000 hrs TBO - Superb Performance

Central fuel shut off valve

2 wing tanks, 65 litres per side

Three bladed composite propeller

For information, please contact P&M Aviation.




Performance Data


Performance at MTOW 472.5 kg
VH; maximum horizontal speed 240km/h  130 Nmph
VNE; maximum permissable airspeed 300km/h  162 Nmph
Take-off run (flap 15deg) 140m        460 ft
Take-off distance over 15m obstacle 250m        820 ft
Max. range (30min reserve) 2000km    1080 NM

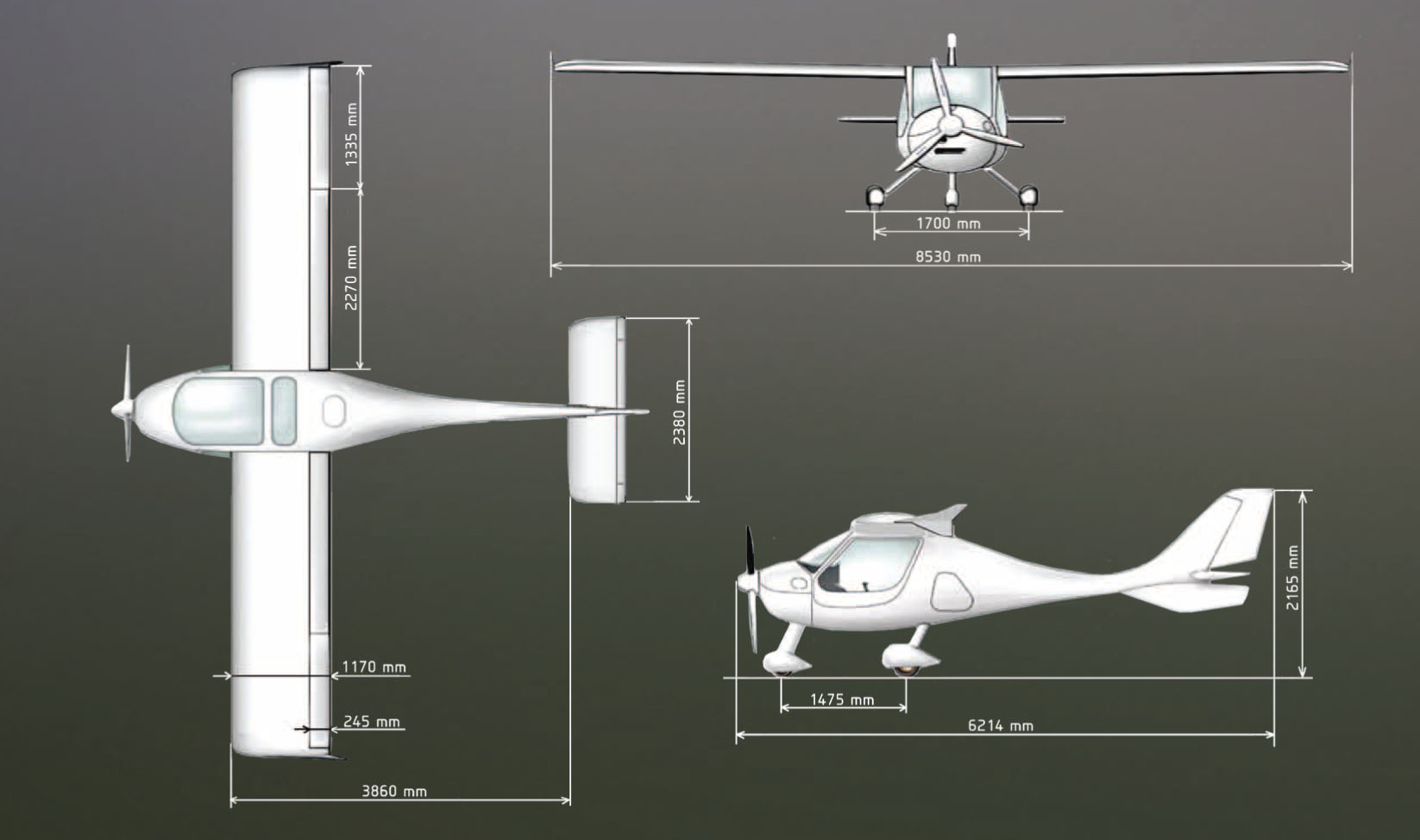

Weights, Dimensions and Capacities
Empty Basic Weight (inc. rescue system) 279.5kg    615 lb
Max. Take off weight 472.5kg    1040 lb
Fuel Capacity 130litres
Occupants 2 x max

120kg        265 lb

Luggage 2 x max 25kg          55 lb
Wing Area 107 Sq\Ft (9.94m)
Wing Span 27ft 9in (8.53m)
Height 7ft (2.16m)
Length 20ft 4" (6.22m)

The information provided is of a preliminary nature and represents the development status of the project at the time of issue. The information may be changed by Flight Design or P&M Aviation at any time without notice.

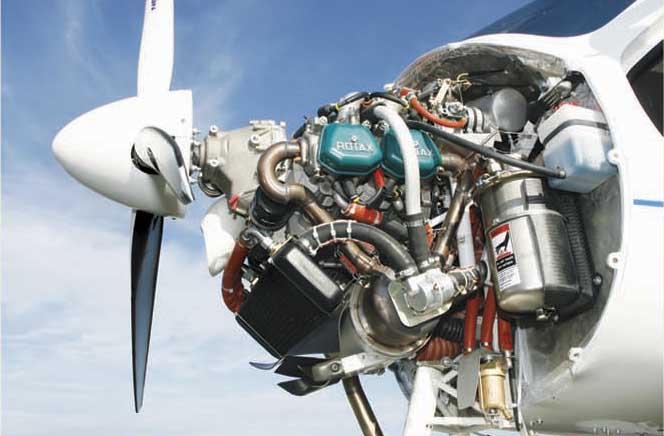

Engine

100 hp Rotax 912S / 2000 hrs. TBO Superb Performance

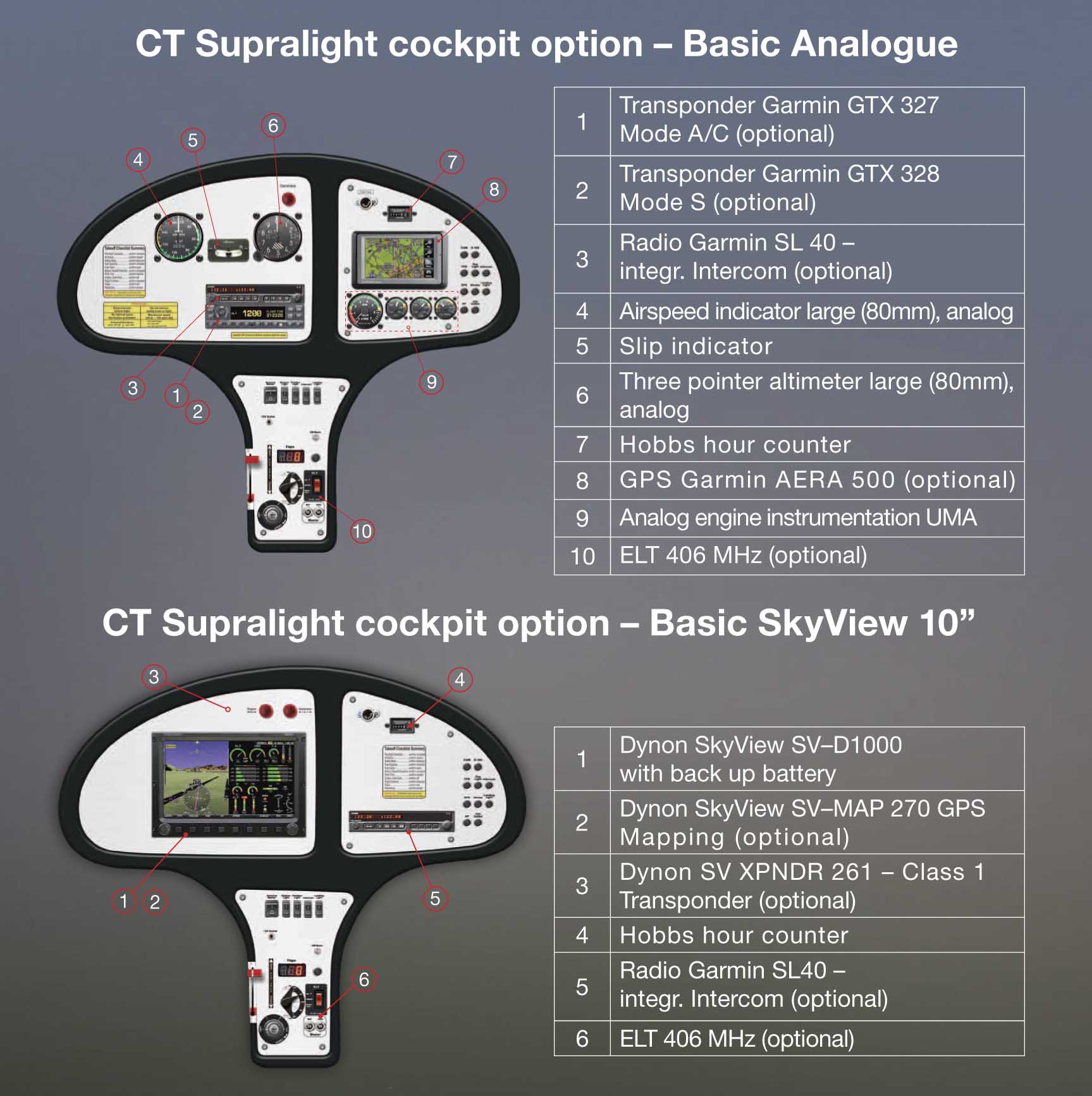

Standard Instrument Options
